Replacement Bar Nose Tips

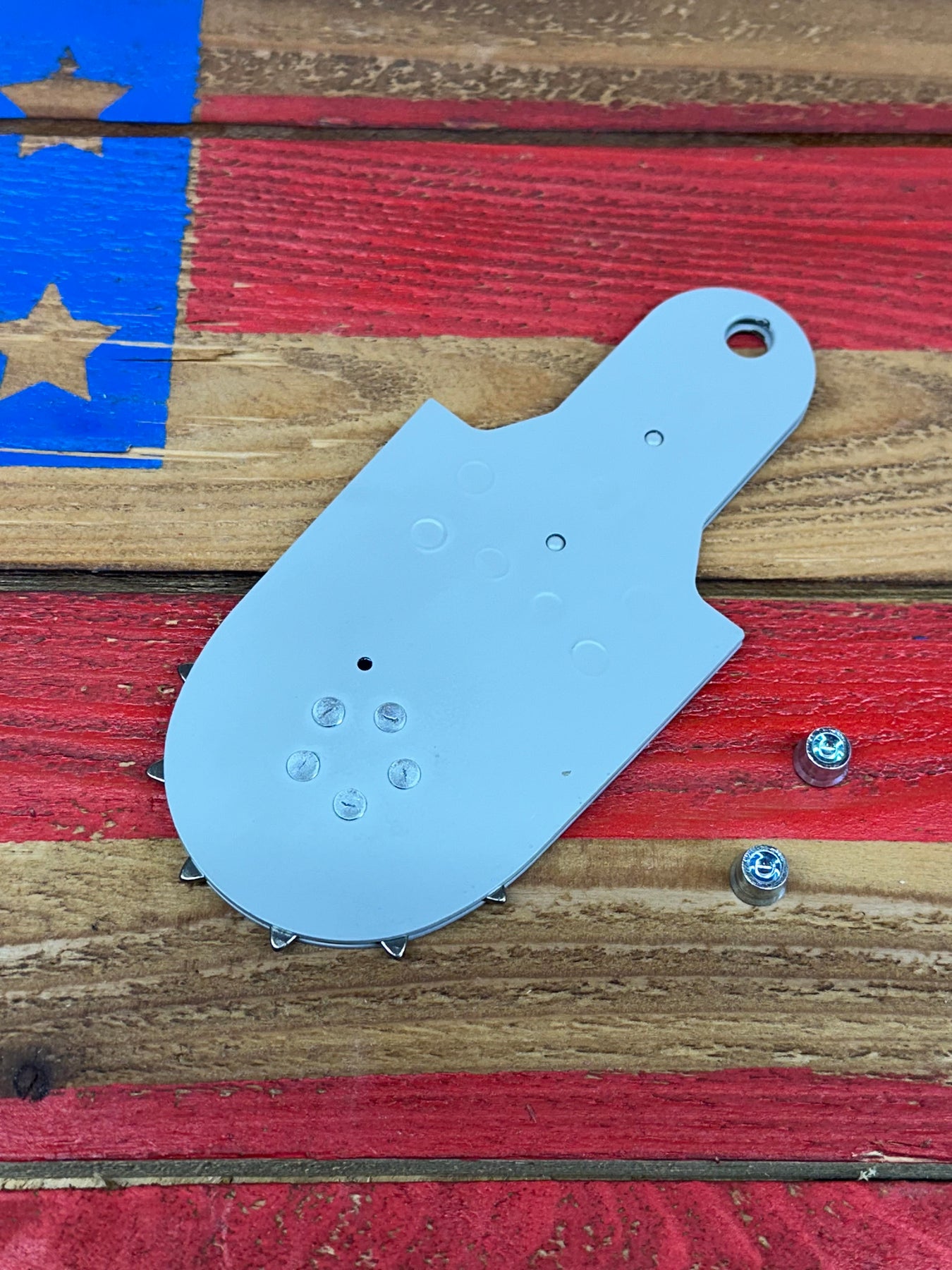

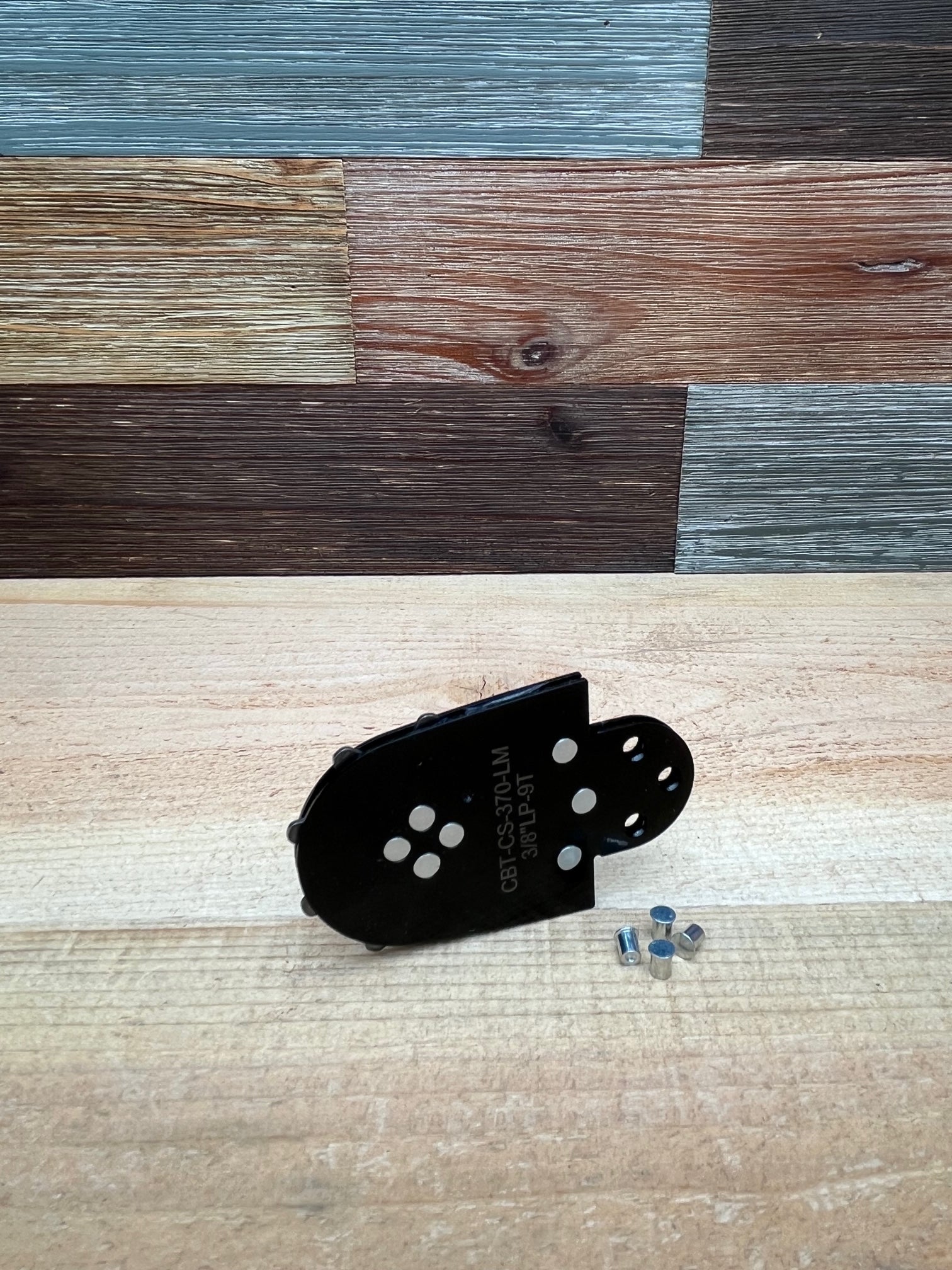

3/8 Low Profile pitch replaceable sprocket nose for Cannon SuperMini. 3 rivet design. Works with .050, .058, .063 gauges.

Replacement Instructions: the old sproket nose tip is easily removed by drilling and punching out the 3 mounting rivets. Fit the new sproket nose tip onto the bar, place the new rivets (included) in the mounting holes and peen the rivet heads flat with ball peen hammer against a heavy/sturdy surface.

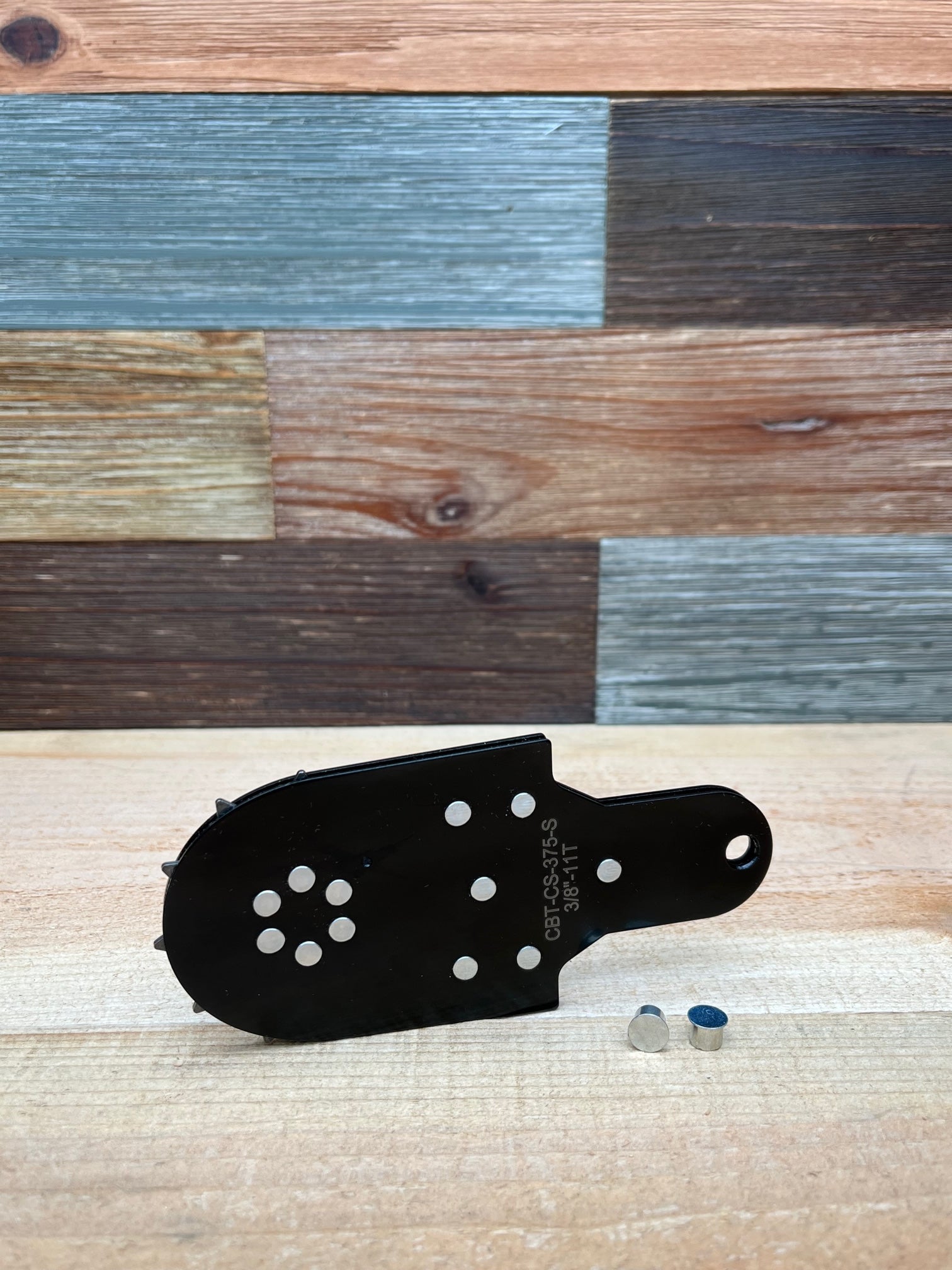

3/8 pitch replaceable sprocket nose for Cannon SuperBar and Duralite SuperBar. 1 rivet design. Works with .050, .058, .063 gauges.

Replacement Instructions: the old sproket nose tip is easily removed by drilling and punching out the single mounting rivet. Fit the new sproket nose tip onto the bar, place the new rivet (included) in the mounting hole and peen the rivet head flat with ball peen hammer against a heavy/sturdy surface.

• 3/8" Pitch Standard RSN kit for "RN" Power Match bars
• 11 Tooth Count
• Standard Replacement Sprocket Nose kits fit Oregon Power Match bars
• Attachment Rivets Included
• Nose radius - 1.115"
